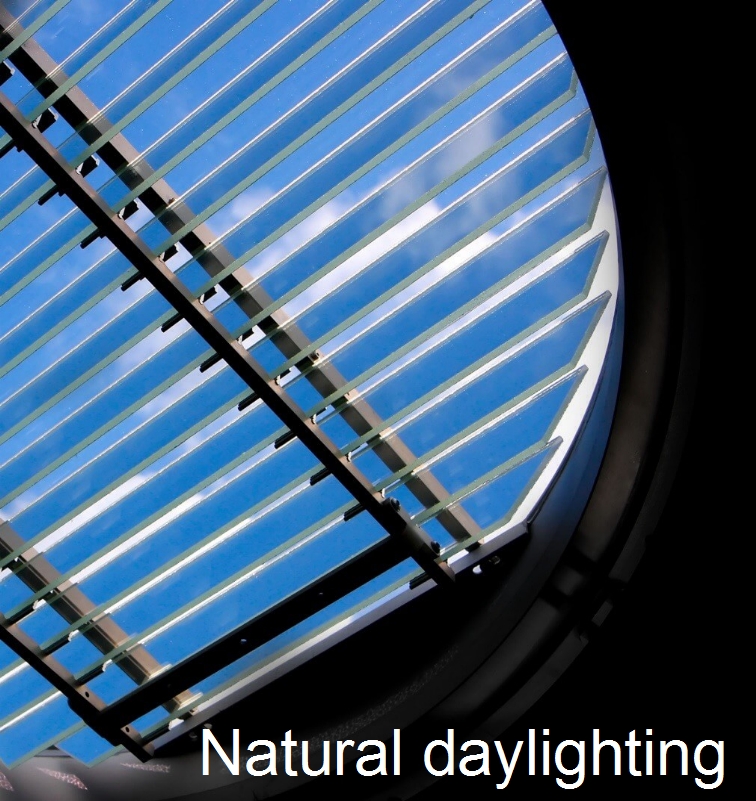

SunBeamer™

SunBeamer™

A new way to experience sunlight

The SunBeamer™ is a revolutionary lighting product that delivers full-spectrum sunlight to previously inaccessible areas in buildings.

Applications

- Sunlight living walls in a building atrium
- Provide collimated sunlight for displays and products
- Distribute daylight to areas inaccessible by skylights or windowsbr /> - Create striking lighting effects below skylights with uplighting/downlighting combinations

How it works

The SunBeamer™ tracks the sun autonomously, maintaining a stationary, collimated beam of light throughout the day. This revolutionary product is used in skylights, atria and with tubular devices to deliver glare-free, full spectrum sunlight to previously inaccessible areas. It is also the tracking component of the SunCentral System™.

Standard and custom lenses and reflectors are available, providing architects and lighting designers with unlimited design possibilities. The SunBeamer™ also provides significant electrical energy savings when coupled with a daylight harvesting system by shutting off electrical lighting when the sun shines.

View SunBeamer™ specification sheet:

 SunBeamer 1x1 array

 SunBeamer 1x2 array

 SunBeamer 1x3 array

 SunBeamer 2x2 array

Features & Benefits

- Connection to the outdoors using natural sunlight
- Full spectrum, glare-free illumination
- Long life, simple, low profile design
- Easy installation and commissioning
- Autonomous operation
- Daylight harvesting made possible with dimmable electric lighting

Specifications

- Standard Size: 500 mm diameter
- Input Voltage: 19V DC
- Tracking Accuracy: +/- 0.1°
- Beam Divergence Angle: +/- 0.37°
- Colour Temperature: Sunlight (Natural Light)
- Colour Rendering Index: >95
